Compressed Wood Pallet Production Line
  • Compressed Wood Pallet Production Line - 0 Compressed Wood Pallet Production Line - 0

Compressed Wood Pallet Production Line

You can rest assured to buy customized Compressed Wood Pallet Production Line from Senyu. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! Scenix pallet supplies high quality Compressed Wood Pallet Production Line. We are professional manufacturer for innovative presswood pallets and compressed wood pallet machines in Qingdao, China. Customer satisfaction is our biggest goal.

Send Inquiry

PDF DownLoad

Product Description

Buy Discount Compressed Wood Pallet Production Line with Free Sample made in China. Senyu is a Compressed Wood Pallet Production Line manufacturer and supplier in China. Our progress depends about the advanced products ,fantastic talents and continuously strengthened technology forces for Wholesale Price China Wood Chip Sawdust Pallet Making Machine for Sale, We have exported to much more than 40 countries and regions, which have gained superior popularity from our costumers everywhere in the entire world. Wholesale Price China Wood Pallet Production Line, Wood Pallet Making Machine, Our domestic website's generated over 50, 000 purchasing orders every year and quite successful for internet shopping in Japan. We would be happy to have an opportunity to do business with your company. Looking forward to receiving your message

China Compressed Wood Pallet Production Line Suppliers and Manufacturers

1.Introduction of Compressed Wood Pallet Production Line

The mould press pallet machine is one of our main products, which meets with environmental protecting requirements.
With the advantages of light, good integrity, no nails and thorns, on-toxic and tasteless, non-rot, easy to clean, on combustion, no spark, waterproof, anti-explosion and anti-skid, guarantine-free, high recycling value and so on, it has been widely used in the storage and transportation of many industries such as food tobacco, pharamaceutical, chemical, machinery, electronic appliances, texcile, auto parts, beer and others, which is highly improving the work efficiency.

Except producing presswood pallet, Scenix also manufacture Compressed Wood Pallet Production Line, a chain of full-set solutions, including molding press machine(core equipment), presswood pallet block machine, drum chipper, hammer mill, drying machine, glue mixing machine, energy supply system and etc.

Compressed Wood Pallet Production Line

2.Specification of Compressed Wood Pallet Production Line

Working pressure Mpa 18-20
Output pressure T 1000
Main oil cylinder diameter mm 400
Main oil cylinder quantity pcs 4
Cylinder stroke mm 600
Maximum size of pallet mm 1300×1200
Motor power KW 11
Weight of machine T 23
Machine dimension mm (L×W×H) 3300×1600×3400
Production capacity pcs/24H 200

3. Compressed Wood Pallet Production Line APPLICATION

This Moulded wood pallet production line is mainly used in production plants for production turnover or packaging, and is also an ideal product for logistics enterprises and storage enterprises. It has the characteristics of quarantine-free and low price, and is very popular among users. Proved by the market, the products are now in short supply.

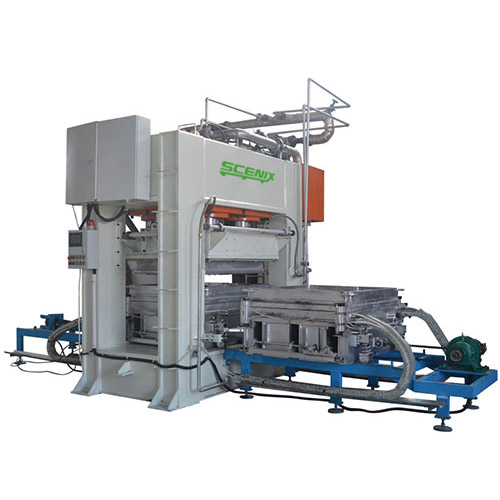

Molding press machine is the core equipment of presswood pallet production. This equipment is energy saving, stable and easy in operation, occupies a small area, has no special request of workshop. It has reasonable structure design and the mold is changeable according the the pallet size you want to produce. The processing time of making one pallet is about 360 seconds, one set machine can produce about 200pcs pallets. It can produce with other supporting equipment full automatic.

Compressed Wood Pallet Production Line

4.Details Of Compressed Wood Pallet Production Line

(1) Equipment design: Special internal design made the framework has a very high tensile strength, strong rigidity and stable..
(2) Hydraulic system: It has an independent hydraulic system and adopts a two-way cartridge valve, which is small and light, compact in structure, small in flow resistance, large in flow, sensitive in action, reliable in work, good in sealing performance, easy to maintain, and long in service life and etc, working pressure can be adjusted within the parameter range.
(3) Control system: Easy and simple to handle, control cabinets can be automatic and manual control.
(4) Automatic control mode: Press the start button to automatically complete a pallet pressing process, and automatically complete the finished product ejection and automatic palletizing to reduce manual handling. It can be switched to manual mode, and the manual button controls the slider to rise, fall and unload.
(5) Safety device
    The motor control part has thermal protectors, circuit breakers, etc., to protect the motor from overloading damage and over-current short-circuit.
    There are independent relief valves for rising and falling oil cylinders to ensure pressure not overloaded.

Overpressure protection: It stops working when the set pressure is reached.

5.Delivery and Shipping Service of Compressed Wood Pallet Production Line

Shipping methods:
By Sea: From Qingdao seaport
By Train or by Land
Payment methods:

T/T, Paypal, Western union, Moneygram, Cash


Q: Why Choose Us?
1). More than 15 Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both domestic and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)And often visit customers to provide services to customers.
2). Manufacturer
Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
Q: How do I know the quality of your machine?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide installation?
Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.

Compressed Wood Pallet Production Line


Qingdao Senyu Environmental Protection Technology Co., Ltd. is situated in the beautiful city of Qingdao, China, specialized in the R&D, sales and manufacturing of compressed wood pallet, presswood pallet and Compressed Wood Pallet Production Line. Through years of strenuous effort, Scenix has started to play an important role in this market with an annual output of 5800,000pcs. Since its very beginning, the company has been committing itself to the belief "focus on reducing costs, creating value for customers".

Thanks to its competitive prices, quality products and post sale services, the company wins a lion's share of the industrial market with its reach into many fields of chemical, auto-parts, printing, food and the like. Most of our customers are repeat order reputable customers from Middle East, Asia, Europe, United States and other foreign countries.

Now we owns 3 branch companies, from the collection of raw materials to the manufacturing of the customized mold, from R&D team to marketing & trading team(Qingdao Yuking New materials).  Scenix has the ability to control all the production process of the industry chain. Qingdao Scenix is stepping up its effort to build up itself into an international brand.
